S(F)11-6300~80000/110 Three-phase Double Winding Non-excitation Voltage-regulating Power Transformer
Main implementation standards: GB1094, GB/T6451, JB/13837, GB24790
Safe and reliable
Well-made
After-sales worry-free
Quality Assurance
Classification:
66kV-220kV oil-immersed power transformer
Telephone:86-371-63719330
Product Introduction
Use of environmental conditions
1. Altitude ≤ 2500m
2. Maximum ambient temperature: 40 ℃
3. Maximum annual average temperature: 20 ℃
4. Maximum daily average temperature: 30 ℃
5. Minimum outdoor temperature: -30 ℃
Main implementation standards
GB1094、GB/T6451、JB/13837、GB24790
Transformer insulation level
L | 480AC200-L | 325AC140/L | 175AC35
(LV 10kV level)
L | 480AC200-L | 325AC140/L | 60AC25
(LV 6KV level)
Main technical parameters
|
Model |
Voltage combination and tap range |
Join Group Label symbol |
No-load loss kW |
Load loss (75)kW |
No-load current current |
short circuit impedance |
|
|
High pressure |
Low pressure |
||||||
|
S(F)11-6300/110 |
110 ± 2 × 2.5 121 ± 2 × 2.5 |
6.3 |
YNd11 |
7.44 |
34.20 |
0.70 |
10.5 |
|
S(F)11-8000/110 |
8.96 |
42.75 |
0.70 |
||||
|
S(F)11-10000/110 |
10.56 |
50.35 |
0.65 |
||||
|
S(F)11-12500/110 |
12.48 |
59.85 |
0.65 |
||||
|
S(F)11-16000/110 |
15.04 |
73.15 |
0.60 |
||||
|
S(F)11-20000/110 |
17.60 |
88.35 |
0.60 |
||||
|
S(F)11-25000/110 |
20.80 |
104.50 |
0.56 |
||||
|
S(F)11-31500/110 |
24.64 |
126.35 |
0.54 |
||||
|
S(F)11-40000/110 |
29.44 |
148.20 |
0.50 |
||||
|
S(F)11-50000/110 |
35.20 |
184.30 |
0.47 |
||||
|
S(F)11-63000/110 |
41.60 |
222.30 |
0.43 |
||||
|
S(F)11-80000/110 |
50.10 |
280.35 |
0.30 |
12 |
|||
Note: The above are the national standard performance parameters. According to user needs, our company can provide products with different performance parameters as required.
According to user needs, our company can provide self-cooling products, but also provide other voltage combinations of products.
|
Model |
Total mass |
External dimensions (mm)Out-Line Dimentaion |
|||||
|
L |
B |
H |
HL |
A1 |
A2 |
||
|
S(F)11-6300/110 |
20990 |
3525 |
3410 |
4770 |
6600 |
1475 |
1475 |
|
S(F)11-8000/110 |
23240 |
3750 |
3765 |
4860 |
6850 |
1640 |
1475 |
|
S(F)11-10000/110 |
26690 |
3980 |
4125 |
4950 |
7080 |
1640 |
1475 |
|
S(F)11-12500/110 |
28650 |
3880 |
4125 |
5125 |
7080 |
1640 |
1475 |
|
S(F)11-16000/110 |
33340 |
4040 |
4495 |
5285 |
7200 |
2000 |
1435 |
|
S(F)11-20000/110 |
38080 |
5460 |
3500 |
5050 |
7840 |
2000 |
1435 |
|
S(F)11-25000/110 |
44580 |
5740 |
4405 |
5420 |
8230 |
2040 |
1475 |
|
S(F)11-31500/110 |
48945 |
5780 |
4445 |
5555 |
8300 |
2040 |
1475 |
|
S(F)11-40000/110 |
57860 |
5780 |
4565 |
5865 |
8580 |
2040 |
1475 |
|
S(F)11-50000/110 |
64290 |
5800 |
4650 |
5740 |
9500 |
2040 |
1475 |
|
S(F)11-63000/110 |
72690 |
5860 |
4760 |
5760 |
10000 |
2040 |
1475 |
|
S(F)11-80000/110 |
90030 |
7060 |
4975 |
5905 |
12000 |
2500 |
1640 |

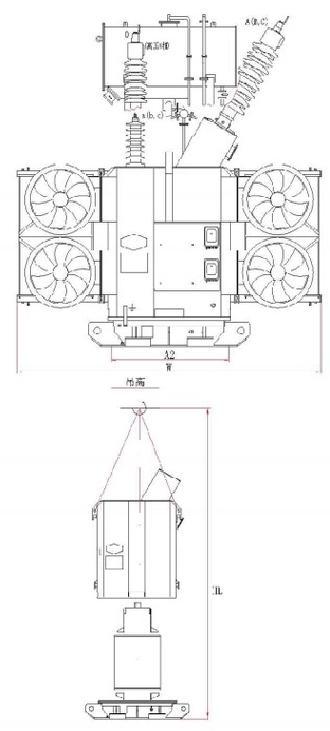

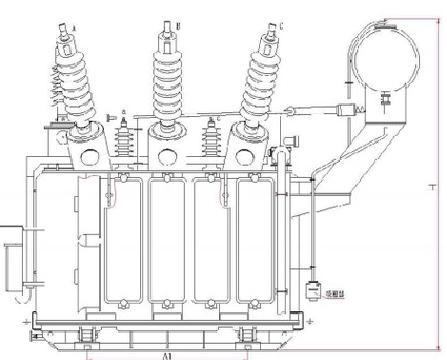

Note: The total mass and external dimensions of the transformer are for reference only, and the actual dimensions are subject to the external drawings of the transformer.
