S(F)Z11-6300 ~ 80000/110 Three-phase Double-winding On-load Voltage-regulating Power Transformer
The main implementation of the standard GB1094, GB/16451, JB/13837, GB24190
Safe and reliable
Well-made
After-sales worry-free
Quality Assurance
Classification:
66kV-220kV oil-immersed power transformer
Telephone:86-371-63719330
Product Introduction
Use of environmental conditions
1. Altitude ≤ 2500m
2. Maximum environment; 40 ℃
3. Maximum annual average temperature; 20 ℃
4. Maximum daily average temperature: 30 ℃
5. Minimum outdoor temperature: -30 ℃
Main implementation standards
GB1094、GB/16451、JB/13837、GB24190
Transformer insulation level
L | 480AC200-L | 325AC140/L | 175AC35
(LV 10kV level)
L | 480AC200-L | 325AC140/L | 65AC25
(LV 6kV level)
Main technical parameters
|
Model |
Voltage combination and tap range |
Join Group Label |
No-load loss |
Load loss |
No-load current |
Short-circuit negative reactance |
|
|
High pressure |
Low pressure |
||||||
|
S(F)Z11-6300/110 |
110 ± 8 × 1.25 |
6.3 |
YNd11 |
8.00 |
34.20 |
0.72 |
10.5 |
|
S(F)Z11-8000/110 |
9.60 |
42.75 |
0.72 |
||||
|
S(F)Z11-10000/110 |
11.36 |
50.35 |
0.67 |
||||
|
S(F)Z11-12500/110 |
13.44 |
59.85 |
0.67 |
||||
|
S(F)Z11-16000/110 |
16.16 |
73.15 |
0.62 |
||||
|
S(F)Z11-20000/110 |
19.20 |
88.35 |
0.62 |
||||
|
S(F)Z11-25000/110 |
22.72 |
104.50 |
0.58 |
||||
|
S(F)Z11-31500/110 |
27.04 |
126.35 |
0.58 |
||||
|
S(F)Z11-40000/110 |
32.32 |
148.20 |
0.52 |
||||
|
S(F)Z11-50000/110 |
38.24 |
184.30 |
0.52 |
||||
|
S(F)Z11-63000/110 |
45.44 |
222.30 |
0.47 |
||||
|
S(F)Z11-80000/110 |
52.00 |
281.00 |
0.30 |
12.0 |
|||
Note: 1 is the national standard performance parameter. According to user needs, our company can provide products with different performance parameters.
According to user needs, our company can provide self-cooling products, but also provide other voltage combinations of products.
|
Model |
Total mass |

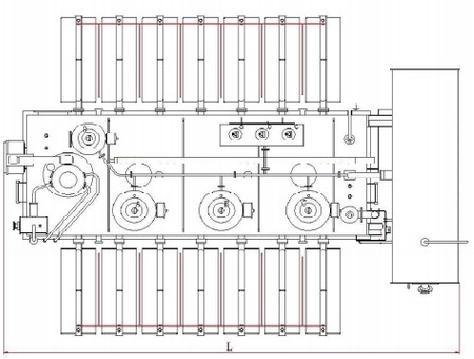

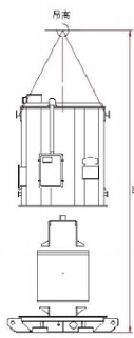

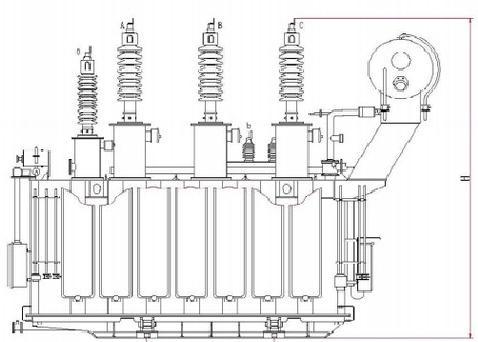

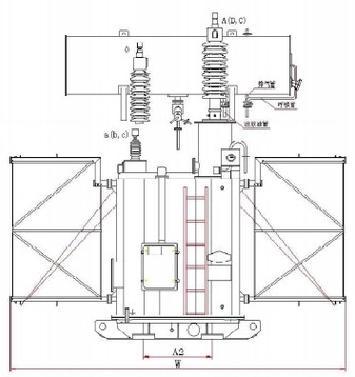

External dimensions (mm)Out-Line Dimentaion |
|||||
|
L |
B |
H |
HL |
A1 |
A2 |
||
|
S(F)Z11-6300/110 |
25460 |
5100 |
4080 |
4800 |
6500 |
2040 |
1435 |
|
S(F)Z11-8000/110 |
28310 |
5190 |
4130 |
4860 |
6880 |
2040 |
1475 |
|
0000/11C |
31550 |
5200 |
4320 |
4870 |
7000 |
2040 |
1475 |
|
S(F)Z11-12500/110 |
35340 |
5575 |
4380 |
4910 |
7300 |
2040 |
1475 |
|
S(F)Z11-16000/110 |
39670 |
5255 |
4360 |
5175 |
7160 |
2040 |
1435 |
|
S(F)Z11-20000/110 |
43970 |
5285 |
4360 |
5310 |
7160 |
2040 |
1435 |
|
S(F)Z11-25000/110 |
46290 |
5410 |
4500 |
5330 |
8080 |
2040 |
1475 |
|
S(F)Z11-31500/110 |
55060 |
5865 |
4420 |
5500 |
8115 |
2040 |
1475 |
|
S(F)Z11-40000/110 |
62935 |
7140 |
4890 |
6195 |
8600 |
2040 |
1475 |
|
S(F)Z11-50000/110 |
78140 |
7345 |
4310 |
5330 |
8000 |
2040 |
1475 |
|
S(F)Z11-63000/110 |
81760 |
7215 |
5425 |
6700 |
8680 |
2040 |
1475 |
|
S(F)Z11-80000/110 |
90500 |
7320 |
5405 |
6870 |
9200 |
2040 |
1475 |
Note: The total mass and external dimensions of the transformer are for reference only, and the actual dimensions are subject to the external drawings of the transformer.
